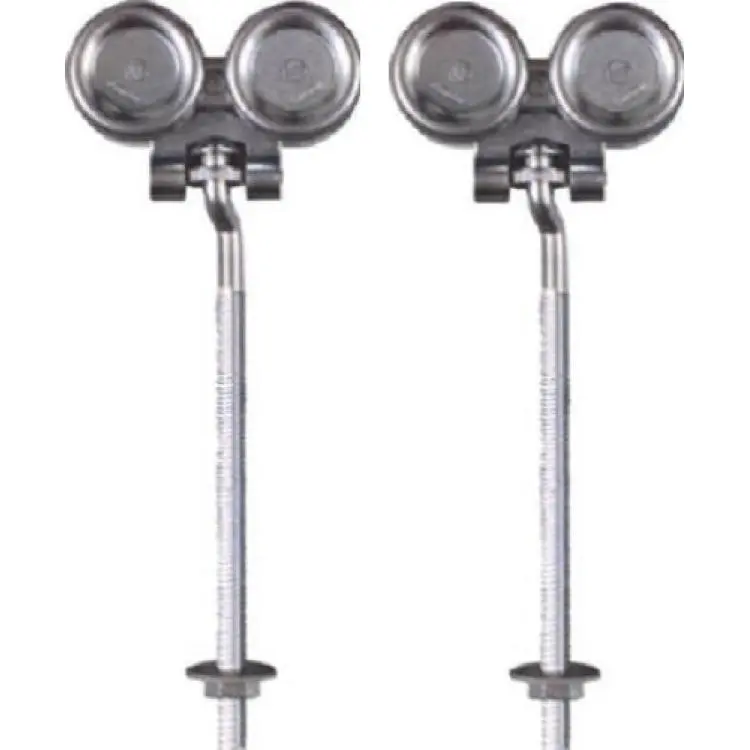

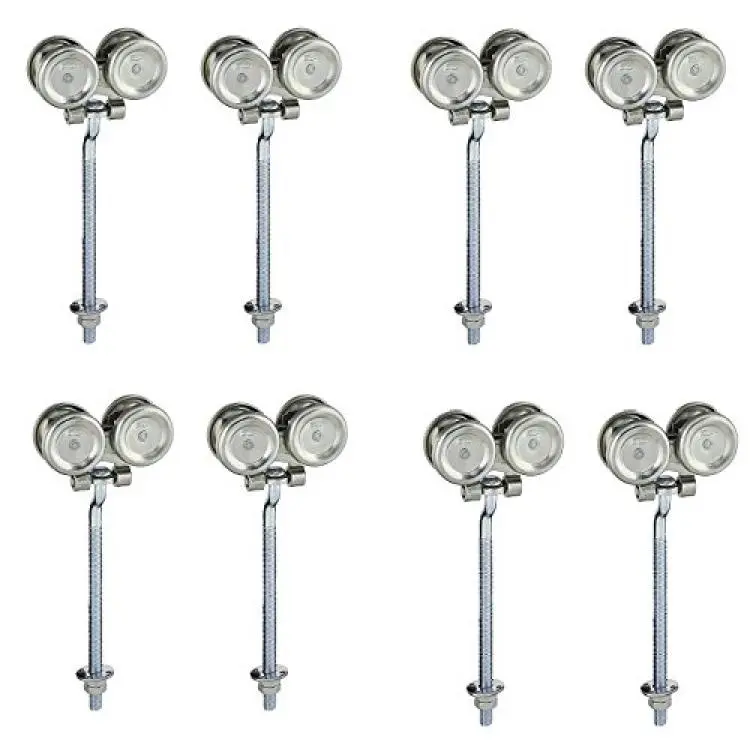

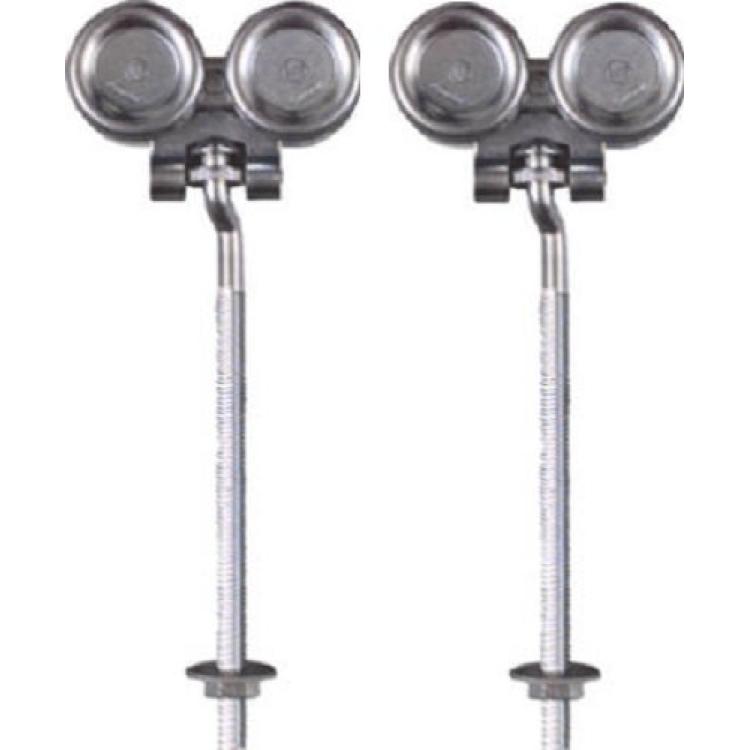

Hanger W/9"Bolt 5.2"W
Availability: Pre-Order, Inquiry Price
*Designed for use with box rail on wood-frame or metal clad doors using a 2"x4" or 2"x6" frame
*For use with #59, #5100, #5103, #5104, #5105, #5110, #5114 or #5116 box rail
*Packed with two washers, four hex nuts, two end caps per pair, and with self-lubricating Delrin bearings
*The 1/2" offset bolt adjusts both vertically and laterally from inside door
*Connecting bolt threaded 7" adjusts laterally 1" by turning offset bolt for desired clearance
National N174-268 Box Rail Hangers With 9" Bolt - 2 Per Package. Zinc Plated. Designed for use with box rail on wood-frame or metal clad doors using a 2"x4" or 2"x6" frame. For use with #59, #5100, #5103, #5104, #5105, #5110, #5114 or #5116 box rail. Packed with two washers, four hex nuts, and two end caps per pair. Durable one piece, precision formed steel. Comes with self-lubricating Delrin bearings. The 1/2" offset bolt adjusts both vertically and laterally from inside door. Connecting bolt threaded 7" adjusts laterally 1" by turning offset bolt for desired clearance. Safe Working Load - 225 lb. per hanger.
