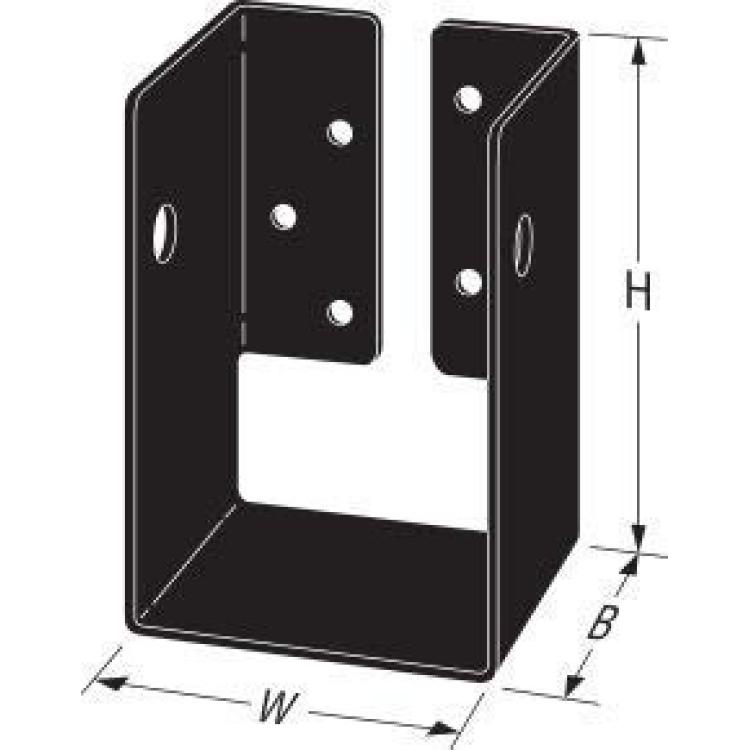

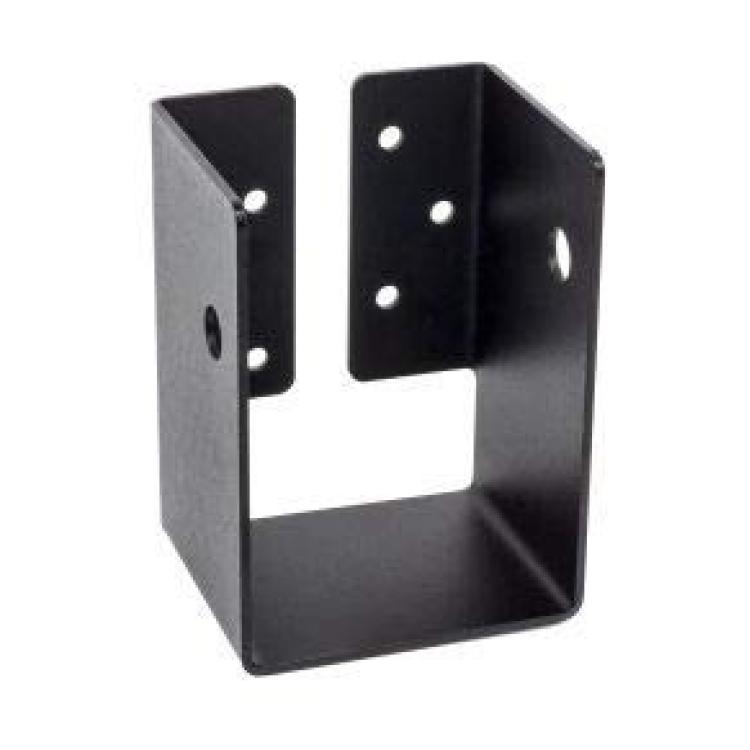

Simpson Strong-Tie APHH46 Outdoor Accents Concealed Flange Heavy Joist Hanger Powder Coated Black (Actual Dimensions 3-9/16" Wide x 5-1/8" high x 3" Base) - Pack of 2
Availability: Pre-Order, Inquiry Price
*APHH46 connects 4x and 6x beams to girders.
*Finish: ZMAX galvanized with black powder coat
*The hangers install easily to the joist with the Outdoor Accents structural wood screw and hex-head washer, and to the header with the Strong-Drive SDS Heavy-Duty Connector screw.
APHH heavy hangers connect 4x and 6x beams to girders. These concealed-flange hangers feature straight edges and provide a cleaner-looking installation for joist connections. Available in a range of sizes, the hangers install easily to the joist with the Outdoor Accents structural wood screw and hex-head washer, and to the header with the Strong-Drive SDS Heavy-Duty Connector screw.
Material:12 gauge
Finish:ZMAX galvanized with black powder coat
Installation:Use all specified fasteners
Use the Outdoor Accents structural wood screw (SDWS22312DBB) and hex-head washer (STN22) to connect to the joist
Use the Strong-Drive SDS Heavy-Duty Connector screw (SDS25300) to connect to the header
